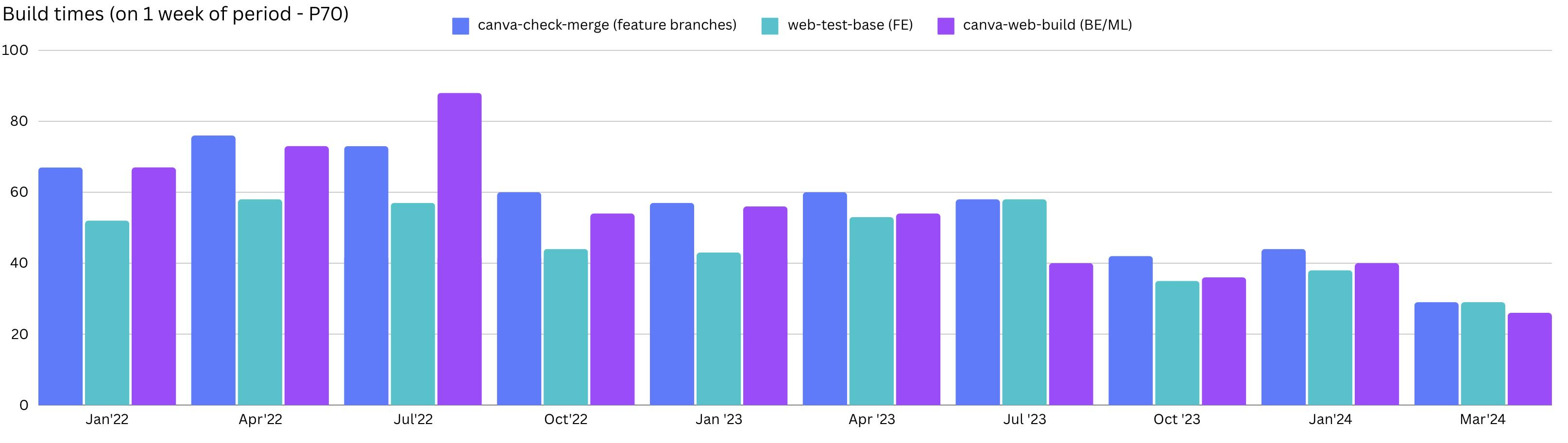

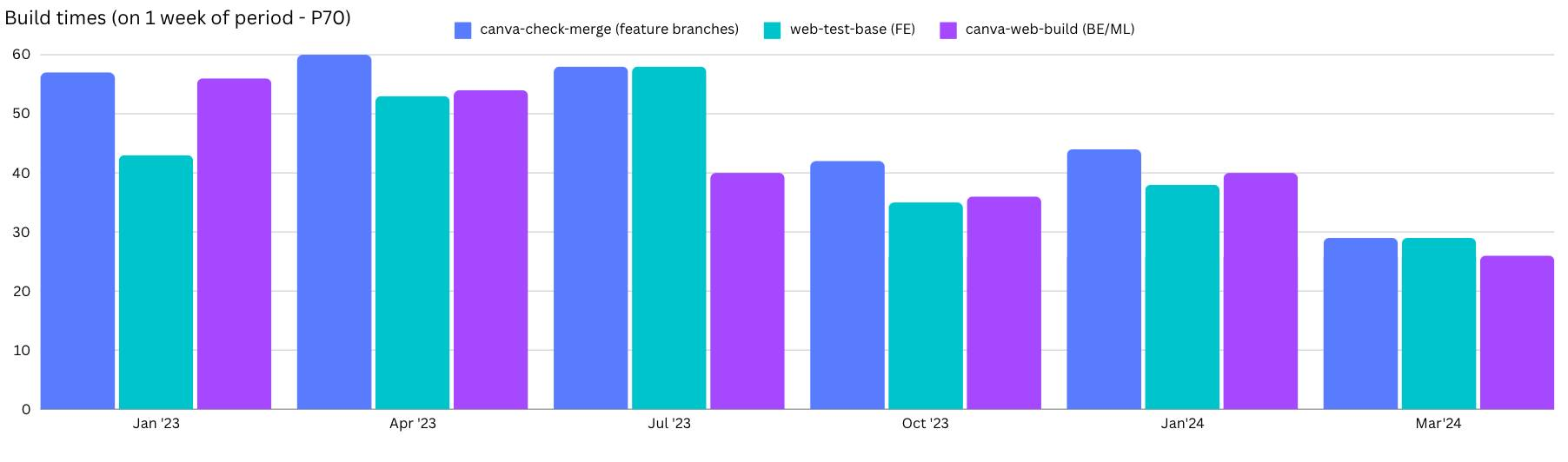

In April 2022, the average time for a pull request (PR) to pass continuousintegration (CI) and merge into our main branch was around 80 minutes. As shownin the following diagram, we’re now getting our CI build times down below 30 minutes(sometimes as low as 15 minutes).

In this blog post, we’ll share what we’ve done to improve CI build times in our main code repository, including:

As an engineering case study, our CI has some interesting properties:

• It’s a decently sized distributed system: It has many components distributedacross thousands of (fairly powerful) nodes.
• It has a non-trivial workload: Our build graph has more than 10^5 nodes and someexpensive build actions (5-10 minutes), which run often.
• It has many downstream dependencies: All these dependencies affect CI performanceand reliability. Some dependencies are outside Canva, such as AWS, Buildkite, GitHub,and internet mirrors (NPM, Maven, Pypi, and so on), and some are in Canva, such as the codethat goes into building and testing software (including all its transitive dependencies).
• It has a critical path: CIperformance is bound by its longest stretch of dependent actions. Because our CI has somany dependencies, it’s difficult to avoid regressions even when we improve things.One bad downstream dependency makes CI build times longer for everyone.

Canva’s CI workflow

In this post we talk a lot about the check-merge pipeline and its associated branches.So let’s do a quick overview of Canva’s CI workflow and pipelines. The following diagram isa high-level view of the flow, with branches on top and pipelines below them.

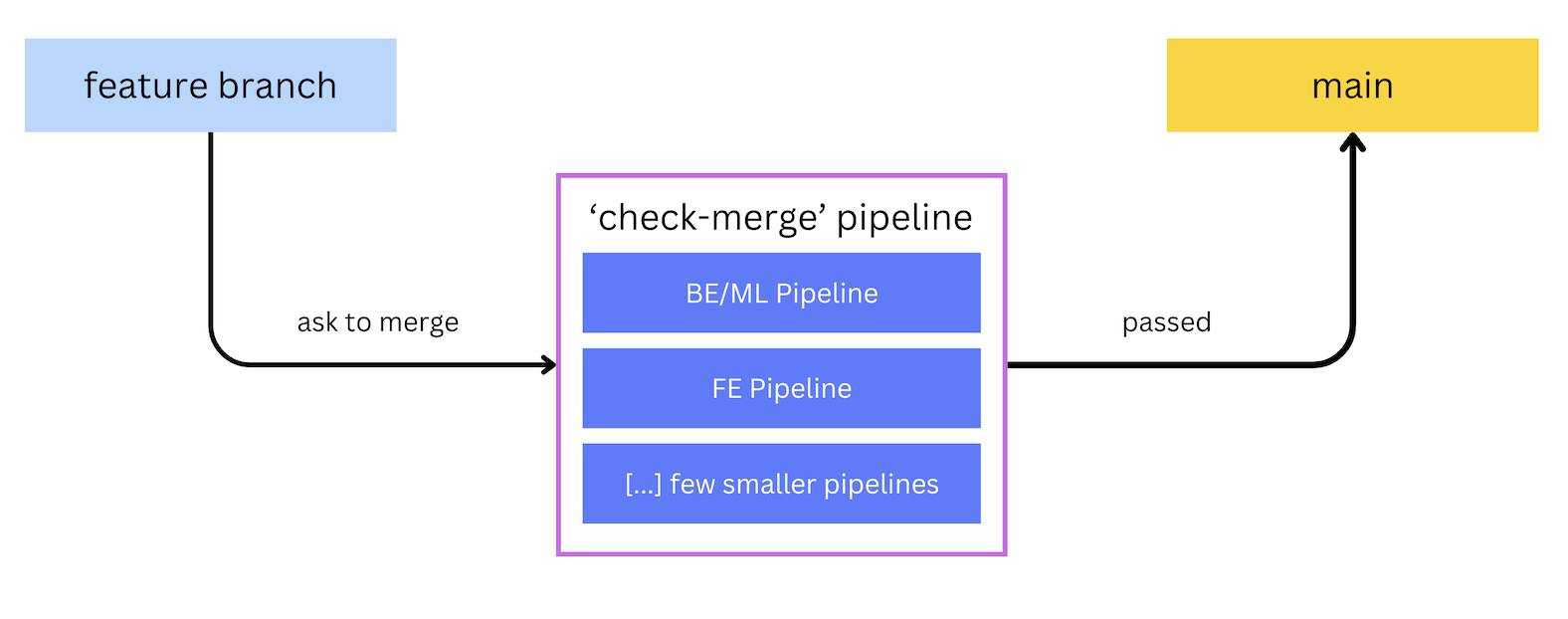

When an engineer asks to merge a PR, CI executes a merge pipeline (check-merge).This pipeline contains the following sub-pipelines: a BE/ML pipeline (for backend and machinelearning builds and tests), an FE pipeline (for frontend builds and tests), and a fewother smaller pipelines (which aren’t as relevant, so we’ve omitted the details).If check-merge passes, the PR merges to the main branch, where all feature code branches cometogether to check if they can be successfully integrated. The rest of this postdescribes how we improved our CI build times.

Finding the best opportunities

In the midst of chaos, there is also opportunity. – Sun Tzu

In the first half of 2022, our CI build times were getting progressively worse.In July 2022, build times to merge a feature branch into main often exceeded 1 hour.

However, we were working to find opportunities and make things better. In June 2022,we formed a CI Experience working group with many people from different teams in ourDeveloper Platform group. The working group found and fixed many easily solved problems, such as:

• Preventable Bazel cache issues with Docker images and build stamping.
• De-duplication of Bazel targets across pipelines.
• Fixing pipeline structures by merging or removing steps where applicable.

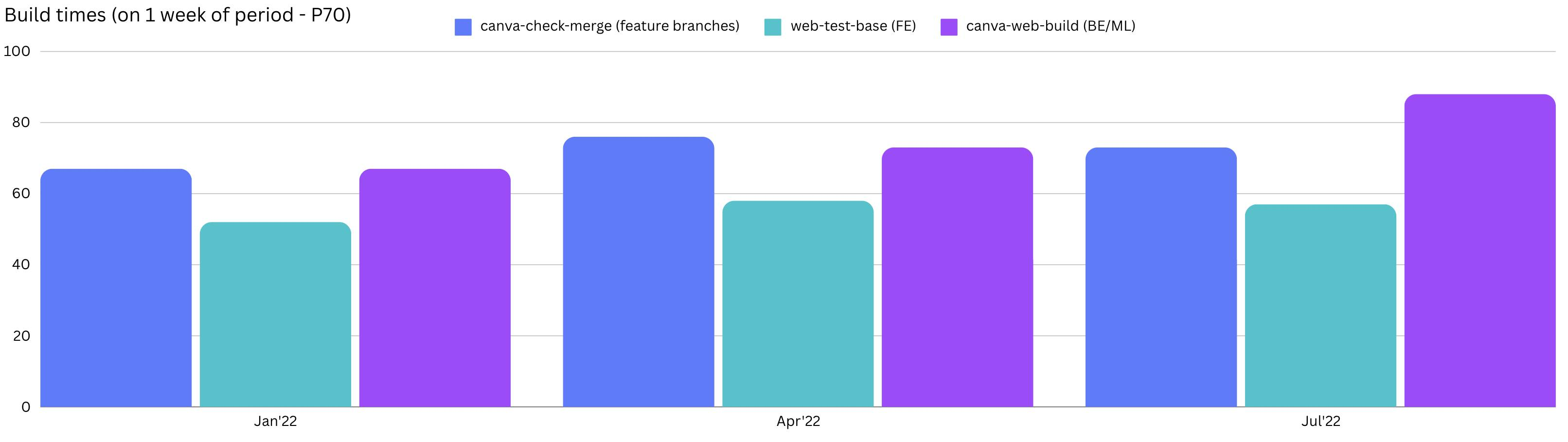

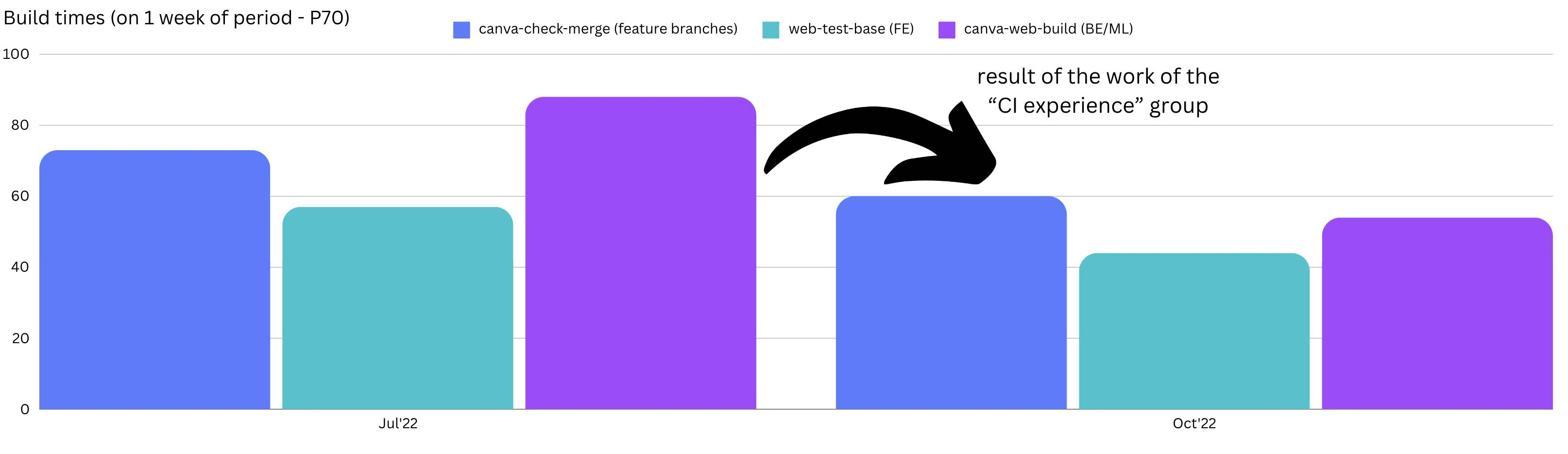

The following diagram shows the result of that work.

We also started some longer-term investigations and initiatives, including:

• A pipeline audit to better understand its steps and identify the big improvement opportunities.
• The Developer Environment and Test Platform teams began converting backend integrationtests into Hermetic Bazel tests to take advantageof Bazel’s caching and parallelism.
• The Build Platform team started exploring Bazel Remote Build Execution (RBE) todistribute our Bazel workloads more efficiently.
• The Source Control team was improving the performance of Git repository checkouts and caches.

Each team employed its own methodologies to understand the opportunities. We used firstprinciples thinking to develop an intuition of how fast CI could be. Then, throughexperimentation, we inspected every part of the process to find out where the differenceswere (for more information, see experiments). From first principles, we knew that:

• Modern computers are incredibly fast (try this fun game).
• PR changes are relatively small (a couple hundred lines on average).
• One build or test action shouldn’t take more than a few minutes on a modern computer,and the critical path shouldn’t have more than 2 long actions dependent on each other.

So, if we assume a few minutes = 10 and multiply that by 2 (2 actions dependent on each other,each taking 10 minutes), we have a theoretical limit of approximately 20 minutes forthe worst-case build scenario. However, we had builds taking up to 3 hours! Whatwas causing this massive difference? As it turned out, our horizontal scaling of CIwas very inefficient. We moved a lot of bytes around before doing any relevant build ortest work. The following sections describe some of these inefficiencies.

Too many steps in CI

Our CI system grew based on the assumption that we can always scale (horizontally) by adding more:

• CI (build and test) work by creating more CI steps.
• VM instances to the CI worker pools so that CI dynamically scales with the jobs’ demand.

In theory, we could continue to grow the codebase (and the amount of CI work to build and test it) whilekeeping the total time to execute the pipelines constant.

However, with this strategy, we had around 3000 jobs (P90) for each check-merge build. Andbecause each job required one EC2 instance during its execution, and we ran more than 1000check-merge builds per workday, it resulted in:

Arbitrary commands in steps and pipelines

We allowed anyone to add arbitrary commands (for example, any script or binaries inthe repository) to CI. This freedom made adding new stuff to CI faster and easierfor the build or test author. However, it resulted in significant efficiency andCI health drawbacks, such as:

• Steps weren’t hermetic or deterministic, wrapped as a Bazel build or test. So they:
  • Can’t run in parallel because they can affect each other’s output (that’s why ajob would take a whole EC2 instance). This caused under-utilization of instanceresources (a large percentage of CPU on our workers sitting idle).
  • Can’t be cached because we don’t have a full definition of their inputs.
  • Can’t be easily isolated because CI doesn’t control which side-effectsthey cause or which dependencies they have.
  • Can cause flakes by leaking state into other steps, inadvertently leaving openprocesses and file descriptors, or modifying files in a way that might affect other steps.
  • Are hard to run locally because many of them have implicit or hard-codeddependencies in the Linux or Buildkite environments (of CI).
• Having pipeline generators and step definitions with complicated conditionals thatwere incredibly fragile (for more information, see could we make pipelines simpler)in an attempt to make them more efficient.

Bazel was the promise to fix all of this, but it had its challenges.

The challenge of achieving fast and correct with Bazel

Bazel promises fast, incremental, and correct builds by providing features such assandboxing, parallelism, caching, and remote execution. However, there were manychallenges in fulfilling these promises. Bazel:

• Is slow to start.

  Loading and analyzing the build graph to generate the necessaryactions from the /WORKSPACE, **/BUILD.bazel, and *.bzl files, plus the filesystemand cache state, might take minutes, especially when you include many targets.It didn’t help that we had a build graph with over 900K nodes.

• Adds significant execution overhead because of process sandboxing(Bazel’s default, but not only execution method).

  Bazel symlinks each file declared as an input dependency (to prevent non-hermetic changes) foreach process sandbox. This is expensive when you have thousands of files in each action(such as node_modules for frontend actions).

• Is hard to migrate builds and tests into because you must declare every input thata rule depends on, which requires a significant amount of time, effort, and someBazel-specific knowledge.

• Is hard to make “Remote Build Execution” (RBE) compatible because it requiresthe worker pool to provide the same inputs to the actions as local executionwould (that is, be truly hermetic).

What we learned

At this stage, we knew that:

• Having a lot of steps as a form of workload distribution was highly inefficient.
• Accepting arbitrary commands and scripts in CI made the author’s lives easier,but was bad for overall CI performance, cost, and reproducibility.
• Bazel needed some work before it could fulfill its promise.

Our biggest challenges and opportunities were to:

• Make our build and test commands more efficient (for example, making them cacheable).
• Optimize the distribution of the CI workload (for example, reducing the amount of I/O involved).

Experiments

A pretty experiment is in itself often more valuable than twenty formulae extracted from our minds. – Albert Einstein

Experimentation is an important tool in the engineering toolbox. One of anengineer’s greatest superpowers is knowing how to quickly explore a problem spaceand its possible solutions through experimentation. However, experimentation isoften misunderstood and underutilized. This is likely because it’s easy to confusethe shaping phase (exploring a problem space at high velocity) with thebuilding phase (building it to last).

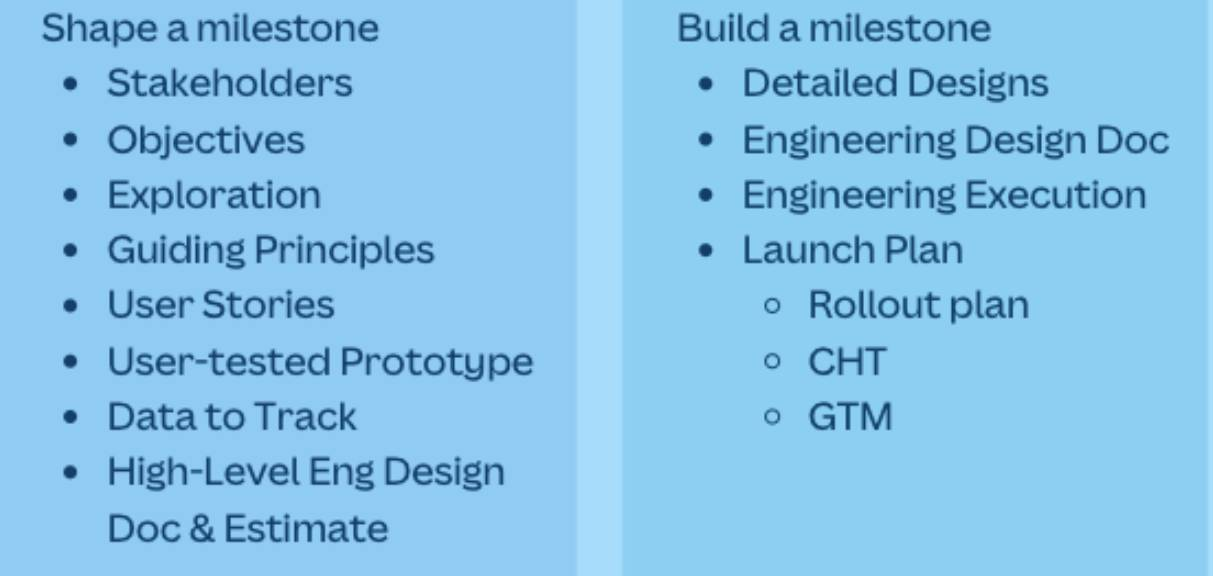

At Canva, we have a framework called the Product Development Process (PDP), which givesus great tools to shape, build, refine, and launch products. In this section, we’llfocus on the difference between shaping (milestones) and building, as described by our PDP.

When you treat the building phase as shaping, those little temporary things go intoproduction before getting an appropriate polish. They’re likely to be poorly thought out,poorly written, and poorly tested, therefore buggy and hard to maintain, inevitablyresulting in a poor product or service.

On the other hand, treating the shaping phase as building is when you write designdocs or PRs before properly exploring the problem space. It wastes a lot of time andlikely results in a fragile proposal, painful review cycles, walls of text, wasted time,and frustration for you and the reviewers.

In the shaping phase, you should:

• Explore the breadth of possible solutions and their consequences before committing to one.

This reduces the risk of you becoming a victim of the sunk cost fallacy (where youovercommit to something you’ve already spent considerable time on).

• Find peers to brainstorm. Collaboration in this phase aims to explore differentideas without the burden of commitment and approvals. Inviting your peers,especially those with experience in the problem space, can yield fantastic results.

• Avoid sending PRs for review or creating fancy infrastructure. You can do morethan you think in your Mac, DevBox, or burner account. That’ll save a lot of time,by avoiding:

  • Perfecting code that doesn’t solve the problem. There’s no point inmaking beautiful code that doesn’t solve the problem.

  • Review cycles. Saving time for you and all the reviewers involved.This is especially beneficial given that the code might change many times untilyou find a suitable solution. And perhaps it’ll be discarded without ever beingpromoted to production.

  • Creating production-grade infrastructure for a solution that doesn’t work.Most of the time, you can get by with mocks, local containers, or burner accounts,which are much quicker to spin up. This is especially true if your fancy infrastructuredepends on creating PRs and involves other teams, which might block you.

Only after you’ve explored and built confidence that you have a solution that worksshould you proceed to the build phase (for example, write proposals and get theappropriate approvals). At this point, you’re significantly more likely to have a goodsolution. And your solution is less likely to be controversial because you’ve done yourhomework.

Our CI experimentation

In the second half of 2022, we had plenty of questions and ideas for the CI platform thatwe wanted to explore and play with. How could we achieve better resource efficiency forour Bazel steps? Could we have a single instance that builds the whole repository?Did local resources constrain it? Could we fit everything in RAM?How long would that take?

We created a test CI instance with the same configuration we had in production.We first tried executing bazel build //… to see how long it’d take to build.The Bazel JVM ran out of memory because the graph was too big. We could increasethe JVM memory, but that would likely force the OS to use swap memory.So, we discarded that idea.

We then excluded the /web directory and package (that is, bazel build – //... - //web/...),which we knew had many targets and nodes. That worked. So we ran that tens of times intest instances, monitoring the execution with tools like top and iotop to seewhere the bottlenecks were.

Observing that disk IOPS and throughput looked like the main bottlenecks, we testedwith larger instances to see if there was an opportunity to use more RAM and lessdisk (which was backed by EBS at the time and isgenerally slower than local disks because they’re network mounted). We even tried agiant instance (448 CPUs and 6 TB of RAM), putting the whole codebase and Bazel’s workingdirectory in RAM to see how fast it could be. It still took around 18 minutes toexecute on a cold cache, indicating that a few actions on the critical path were boundby the speed of a single CPU.

After much testing, we eventually launched more efficient instance pools using thei4i.8xlarge instances for the buildall step (our slowest at the time). That instance type gives us multiple SSDs andis very good for I/O heavy workloads. It worked well with Bazel caches, sandboxing,and containers, reducing the job runtime from up to 3 hours to around 15 minutes.It also increased our confidence to use a similar approach with othersteps in the pipeline.

Bazel’s “build without the bytes”

Before executing any build or test action, Bazel checks if the result is in the cache(one of its layers). If it’s in the remote cache, it downloadsthe result (that is, the built artifacts).

At Canva, we’ve long had a Bazel cache shared across all CI workers. It’s a simplesetup but amazingly effective. It’s a service called bazel-remote,installed on every instance, backed by an S3 bucket as its storage. So, the gRPC communicationbetween the Bazel server and the cache happens locally, but it’s supported by globalshared cache storage.

While experimenting with large instances (see our CI experimention), we learned 2 things:

• We downloaded hundreds of GBs worth of artifacts (mostly containers) on every backend build.

• Bazel has a mechanism called build without the bytes (BwoB). It has a --remote-download-minimalflag that prevents Bazel from downloading the result of an action from the cache unless anotheraction (like a test) needs it. So we knew it had the potential to save a lot of network I/O and time.

We experimented with this, and it looked like a big win. Cold builds (of the whole repository, excluding /web)could be as fast as 2.5 minutes.

However, during experimentation, we also learned that builds could fail if artifacts were (ever)evicted from the cache. We obviouslycouldn’t let the S3 bucket grow forever, so we feared long-tail issues if we usedour bazel-remote S3 setup.

After learning of this cache issue, we experimented with a simple workaround of retryingwhen those (fairly rare) cache check failures occur. It worked really well and we rolled it out.

This workaround improved backend builds by 2x (from around 10 to 5 minutes) and machinelearning builds by 3.3x (from around 6 minutes to less than 2). We now do this on allBazel steps (including tests).

Could we make pipelines simpler?

Our pipelines using our Typescript generator were often very slow to generate andhad fairly complicated definitions.

So, we made a proof-of-concept (PoC) in Bazel to see if it could be simpler and faster.In this new generator, we declare the pipeline configuration in Starlark(Bazel’s configuration language), which we convert to YAML, as Buildkite expects.

It resulted in a significantly simpler pipeline generator than its Typescript counterpartbecause the configuration significantly limits the complexity (that is, there areno side effects, and it’s hermetic by design)we introduce into the pipeline definition. The PoC ended up being the base for ourcurrent pipeline generator. This new generator simplified our main pipelines frommany thousands of lines of code to a couple hundred.

Deliver fast and incrementally

Great things are not done by impulse, but by a series of small things brought together. – Van Gogh

After all our experiments, we were confident we had solutions to make CI significantlyfaster, simpler, and more cost-effective.

But because CI was already slow, flaky, and painful, we didn’t want to promise asolution that would take forever. We wanted to deliver fast and incrementally.One of our core values is to dream big and start small. And it’s often great for anygoal or strategy that will take months. Incremental delivery lets us:

• Make our users happier sooner while we work on our next big thing.
• Learn what works and what doesn’t sooner. Big mistakes happen often in projectsthat take years to deliver.

You generally want to break big goals into multiple steps, with each deliveringincremental value and leading towards the bigger goal.

Hermetic backend integration tests (TestContainers)

Previously, backend integration tests were non-hermetic (and therefore not cacheable).This meant that each build ran every test, with this step easily pushing over 50 minutes.These tests were not hermetic because they depended on a single set of storage containers(localstack) starting before running tests. This made the tests flaky because all testswere running against and overloading the single set of storage containers. Some testsrequired exclusive container access, leading to complex test parallelism and ordering.

The Developer Runtime team developed a framework for hermetic container orchestration usingthe TestContainers library, allowing each test to control its distinct set of storagerequirements within the confines of a Bazel sandbox, ultimately allowing us to cache these tests.

Service container tests and hermetic E2E

The Verify Platform team extended this hermetic container orchestration framework tocover Canva backend service containers, with each service having its own TestContainerimplementation and associated Service Container Test (a test validating that the containercan launch correctly). This shifted many common deployment failures to CI, and is asignificant step towards deprecating the non-hermetic full-stack tests.

We then used these service container definitions to compose hermetic E2E test environments,allowing E2E tests to be cached, with rebuilds required only when modifying a serviceinvolved in the test. The reliability of the new E2E framework also significantlyimproved over the previous iteration because each service container is hermeticallytested in isolation, making failures much easier to detect and diagnose.

BE/ML Pipeline v2

The previous experiments and work (the simpler pipeline generator, the larger agent pools,and the pipeline audit) gave us enough knowledge and confidence to take the next big step:grouping the steps in the BE/ML Pipeline to improve its efficiency.

We were initially hesitant because grouping steps would change the UX. However,we also knew that launching was the best way to validate the idea and determineif we could expand it to the FE pipeline.

In April 2023, we rolled it out after adjusting the pipeline generator steps andasking for feedback from some engineers. It resulted in:

• Reduced build times, on average, from 49 minutes to 35 minutes.
• Reduced dependency pressure, from 45 to 16 steps (and build minutes by around 50%).

Inadvertently, we broke a few dependencies we were unaware of (for example,observability tools from other teams). We needed to do a better job managing anddecoupling our dependencies and be more careful on subsequent rollouts.

Overall, the wins and learnings were important stepping stones toward our next bigmilestone: a new FE pipeline.

FE Pipeline v2

After the BE/ML Pipeline revamp, we attempted a similar approach to improve the FEpipeline’s efficiency.

The pipeline triggered a sub-pipeline build for each affected page or UI package.This added a large overhead (making it inefficient and expensive, for the reasonswe discussed in Finding the best opportunities).As a result of trying to avoid this overhead, we’d created an intricate and fragile setof conditionals and branches.

We hoped grouping steps would make FE builds faster and simpler and reduce costs. However,after some experimentation and grouping those steps into a smaller and simpler version,we hit a few problems:

• Bazel query and bazel-diff on the pipeline generator were too slow.

  bazel-diff used to be generated and evaluated against Bazel queries (defined per step) in the pipeline generator.It took more than 10 minutes to generate the pipeline, which isn’t good because it’s on the critical path.

• The frontend integration tests, as they were, couldn’t be grouped in a realisticnumber of instances. The tests required a massive number of instances to execute them.This was one of the reasons why we saw large spikes in agent demand.A single build could require hundreds of agents to execute integration tests.Because multiple builds are requested close to each other at peak times, thespike in demand would increase agent wait times and require more than 1,000 instancesto be started.

With these findings, we decided to:

• Drop bazel-diff from pipeline generation for the CI pipelines.

  We could leave the work of figuring out what to execute to Bazel’s native caching mechanism.Although we knew it was a bit less efficient than bazel-diff, we also knew it wassimpler and less prone to issues with correctness. We would revisit the problem later,by moving the conditional evaluation to the job run-time (see a faster pipeline generation).

• Try to bazelify the frontend integration tests. It would be ideal if integrationtests could take advantage of Bazel’s caching and parallelism.

• Try to bazelify the accessibility (a11y) tests. Although not as time orcost-intensive as integration tests, accessibility tests were also hard to group.They took more than 30 minutes to execute in a single instance. Perhaps we couldbring them to Bazel too?

To avoid the same issues we had when launching the backend pipeline, we worked hardto decouple all the dependencies entrenched in the FE Pipeline.

Frontend integration tests in Bazel

The frontend integration tests were an interesting opportunity. We were confident wecould make them more efficient by converting them to Bazel, taking advantage ofits parallelism and caching. But how big was the opportunity?

First, we did some rough estimations of the potential impact:

• Time: It’s hard to guess how much we can save without knowing how long Bazel testswould take in practice and what sort of cache hit ratio we’d get. If we guess a50% improvement (which might be reasonable), we’d save 98M minutes per year.

• Money: We estimated that by EOY 2022, each build minute costs, on average,$0.018. So, saving 98M minutes per year would save 1.8M $USD. Even if this wasoptimistic, it seemed like a great opportunity to deliver big savings.

• Number of steps per agent: In 30 days, we execute around 1.5M frontendintegration jobs for 14915 commits (an average of about 100 jobs per commit).If we had them in Bazel, we could reduce that to 1 job per commit. Being pessimisticand distributing in 10 jobs (in the end, we ended up with 8), we’d still reduce about90 jobs per commit, reducing around 1.3 M jobs/agents per month. That’s a lot of agentwarm-up and downloading that we’d save.

Given these numbers, we were confident (discounting our cache hit ratio guesses) that they’d have a big impact.And it’d be another step towards making most of our CI tests homogeneously managed by Bazel.

But what about effort? We had no idea how hard it’d be. At the time, there was a lot ofuncertainty regarding how hard it was to declare all the input dependencies and wraptests in Bazel. So, again, we did a quick PoC. Surprisingly, it was pretty straightforward.Although we had some challenges to solve (for example, dynamic dependency discovery andflakes because of resource contention), they looked very managable.

So we started a working group, mitigated the issues, and it was ready to launch.

To avoid duplication of work, we launched it together with the new frontend pipeline (for more information, see here)

Accessibility (A11y) tests

Again, how big would the opportunity for a11y tests be? Some more rough estimates:

• Time: A11y tests consumed 680K minutes per month. Assuming Bazel can cut this by80% through caching (we were more optimistic about cache hit ratios here thanfor integration tests), we could save around 6.5M build minutes per year.

• Money: Again, estimating each build minute costs an average of $0.018, a11ytests cost around 12.5K $USD per month. If we reduce this by 80%, we’d save around100K $USD per year.

• Number of steps: A11y tests executed 67145 jobs for 13947 commits. By executing1 job per commit instead of 1 per page, we could reduce the number of jobs by 5x.

We started another working group to deal with hermetic a11y tests, and theyquickly came up with a solution based on the existing work of other Jesttests running in Bazel.

FE Pipeline, and Bazel frontend integration and accessibility tests launch

These 3 projects were ready to go, but the launch was risky because we were:

• Grouping many steps across the frontend pipelines, affecting the DX (although itwas similar to what we’ve done before with BE/ML Pipeline, so we had some confidencethat it’d be OK).
• Decommissioning almost all sub-pipelines for page builds.
• Launching the new frontend integration and accessibility tests in Bazel.
• Fast approaching the code freeze period for Canva Create in Sept 2023.

Despite these risks, we were confident that it’d all work. We’d been running thesechanges in shadow pipelines for a long time and didn’t want to wait another monthto deliver the improvements. At the very least, we wanted to learn what was wrong sowe could use the code freeze period to fix what needed fixing.

We launched on 13 September 2023, only for 1 hour, to observe any issues. After notobserving any significant issues, we launched permanently that afternoon.

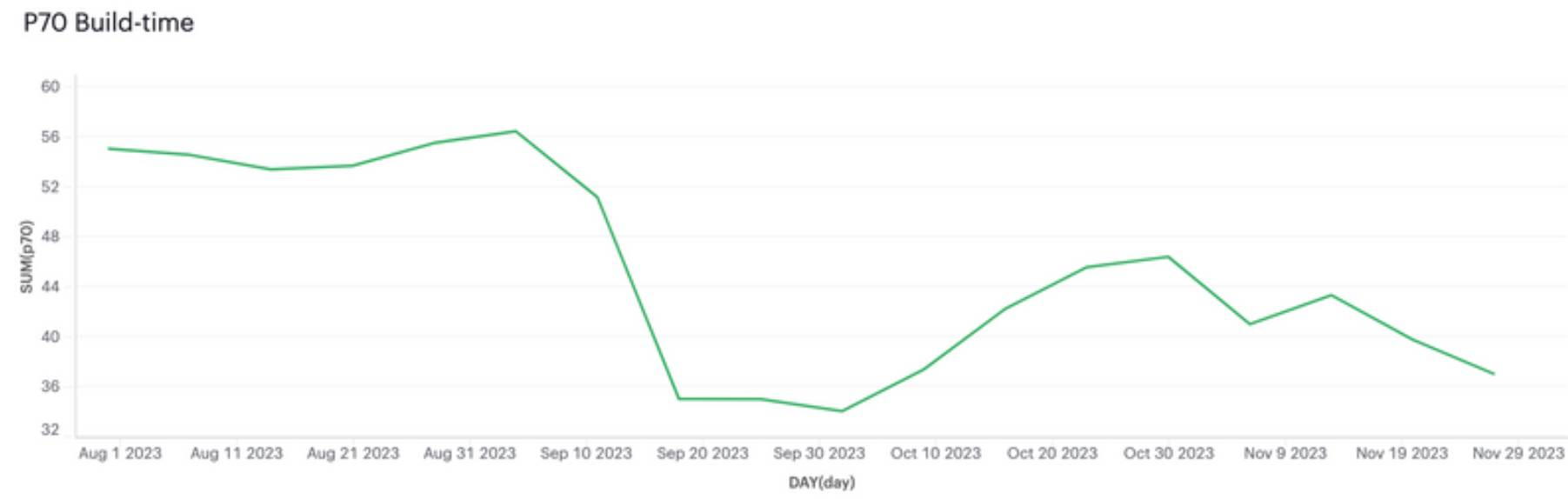

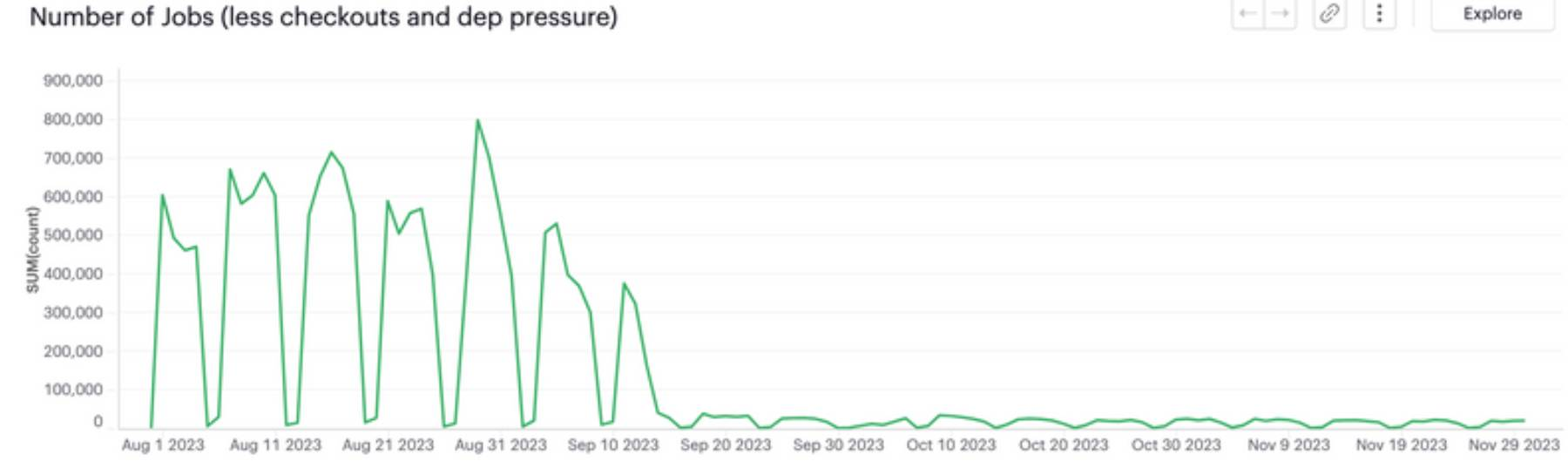

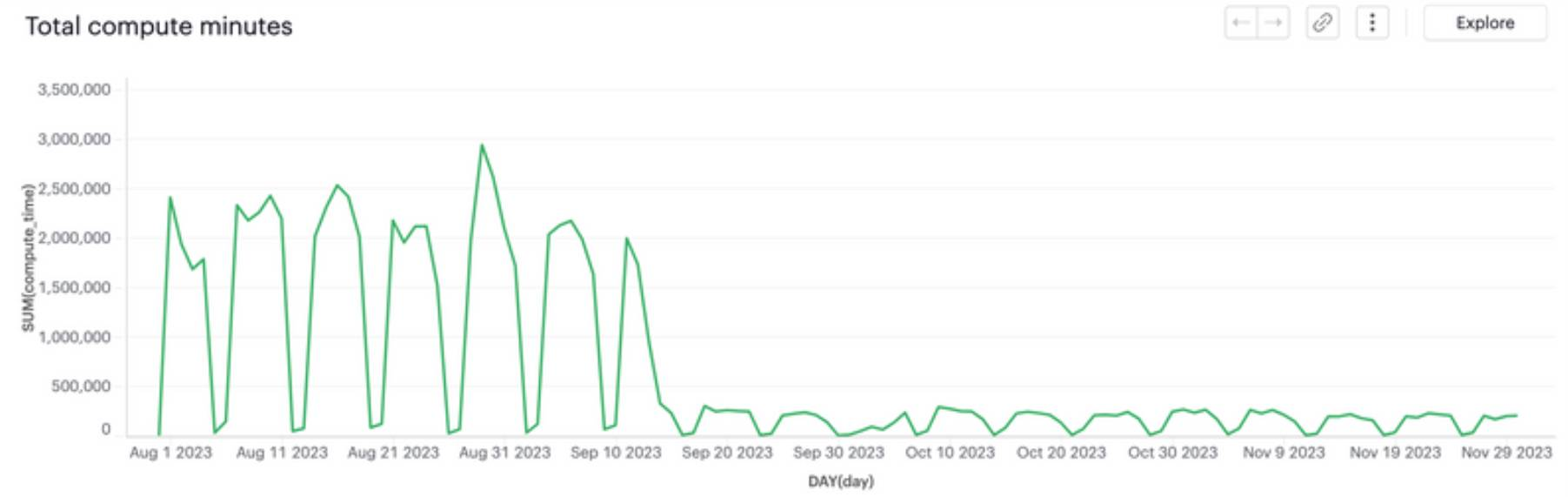

As shown in the following diagrams, the launch greatly impacted the metrics, as we predicted.

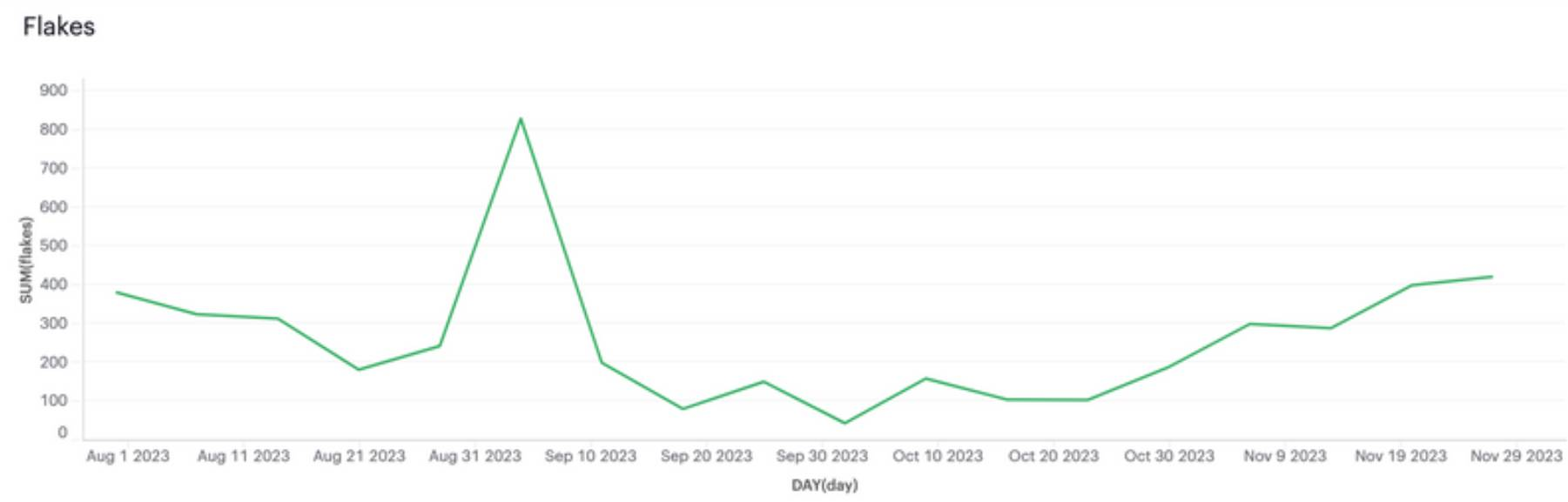

Note how we had regressions in performance around 11 Oct, and in flakiness around 25 Oct.As mentioned before, it’s hard to avoid them.

The changes we made weren’t trivial, but delivered big improvements. They made thefrontend pipeline significantly faster and cheaper, and the code much simpler.

A faster pipeline generation

Removing bazel-diff and bazel query from the pipeline generation process reducedthe pipeline generation step to 2-3 minutes. However, 2 minutes on the criticalpath isn’t great, and we knew we could do better.

Brainstorming the problem, we decided we could:

• Generate the pipeline statically instead of at job runtime.
• Avoid the git checkout and preparation time and cost.
• Move the git conditional evaluations to the job runtime.
• See how we could reintroduce bazel-diff at runtime.

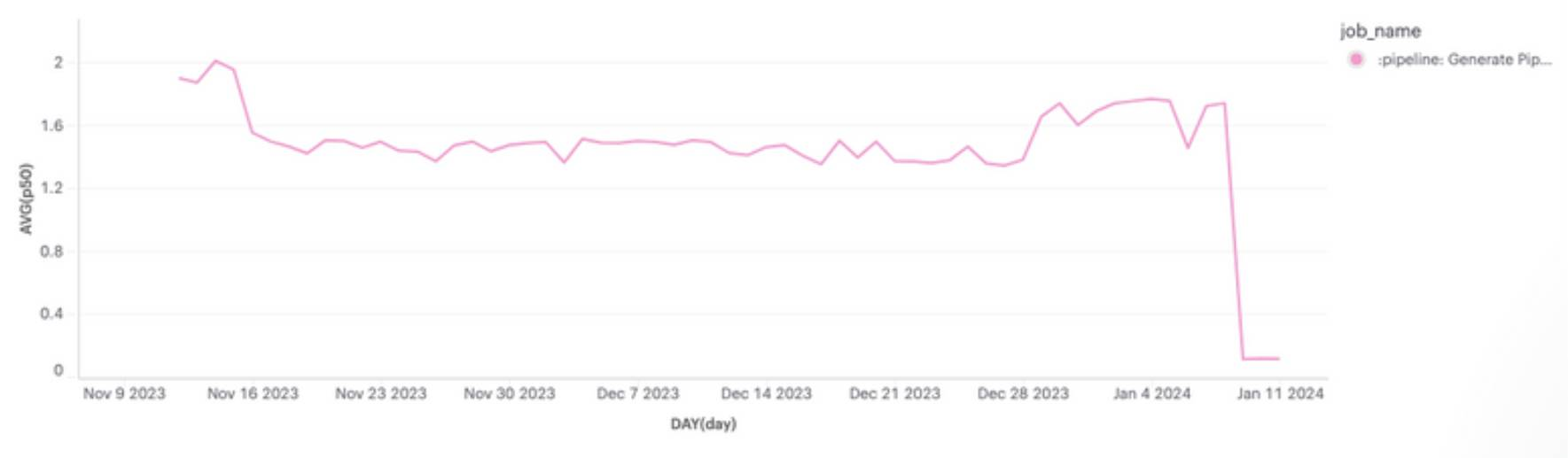

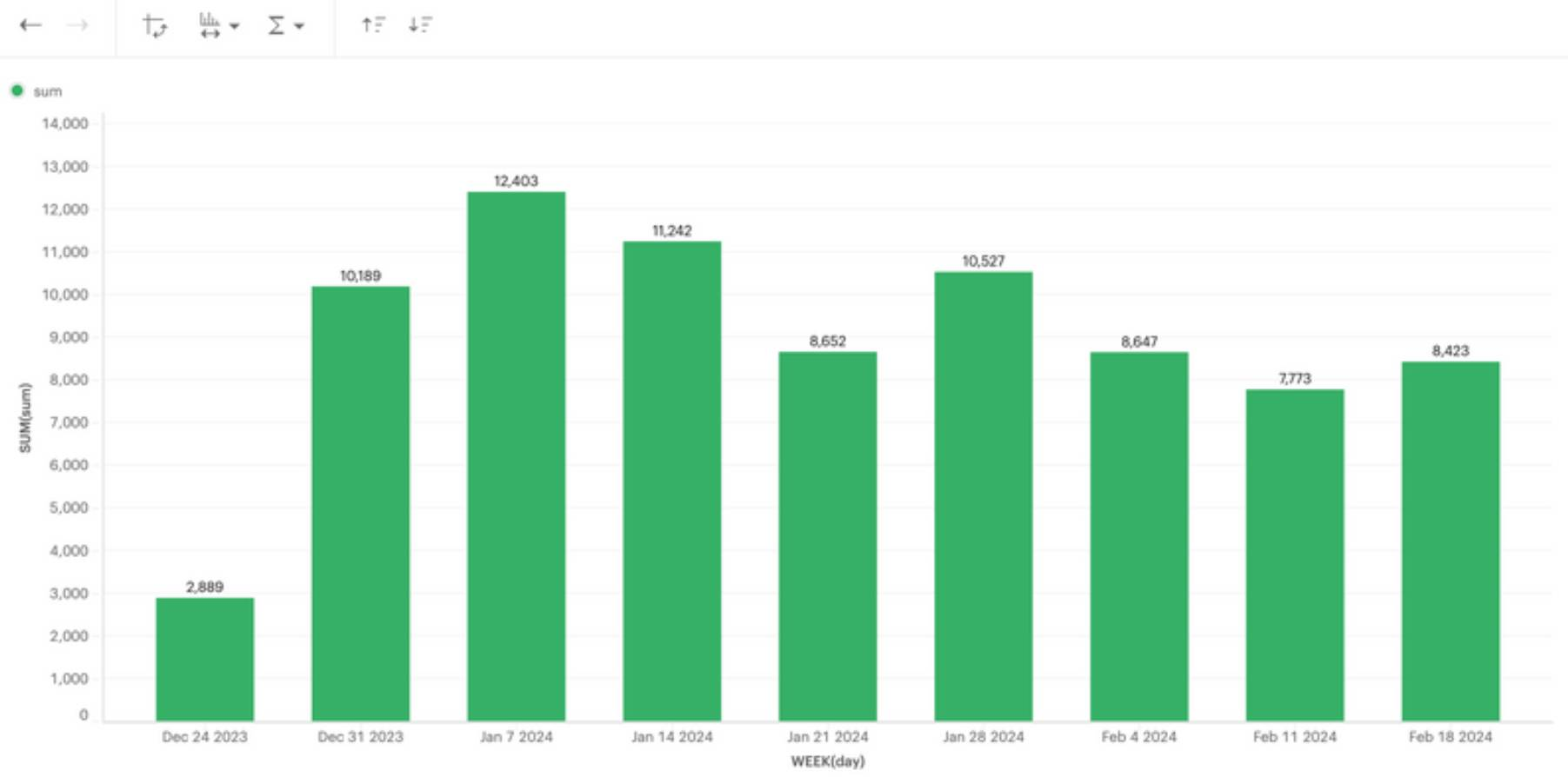

We quickly had solutions for points 1, 2, and 3, and on 9 January 2024,we launched them for BE/ML Pipeline, and soon after, for FE Pipeline.The following diagram shows the result.

For point 4, reintroducing bazel-diff at job runtime, we set up another POC. Ithad dedicated instances to calculate the bazel-diff hashes (that is, a hash ofall inputs of each Bazel target) and upload them to a S3 bucket as soon as acommit was pushed. At job runtime, we downloaded the hashes from the bucket tosee which targets were affected and needed to run. As a fallback, if the processfailed, we left Bazel to do its usual thing.

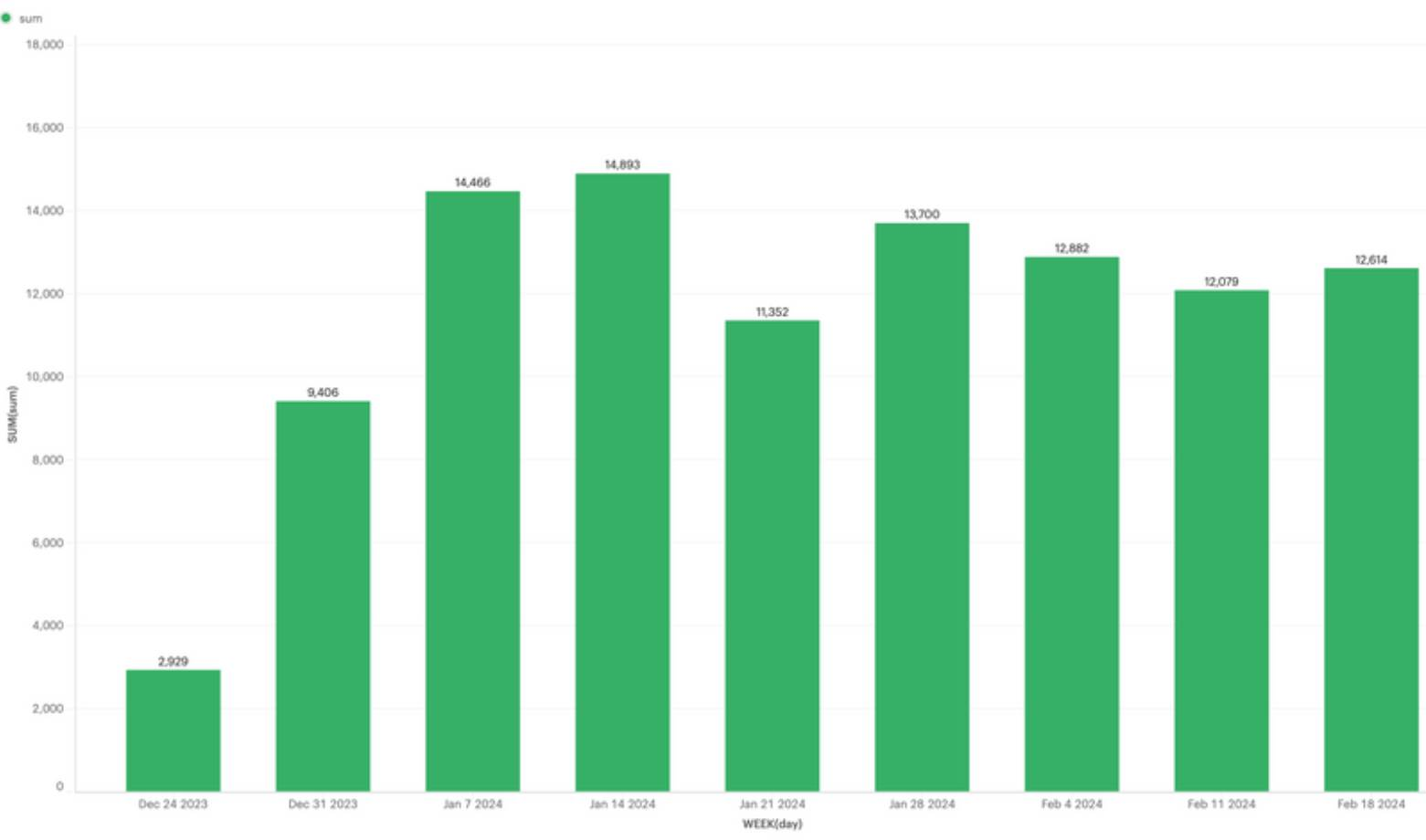

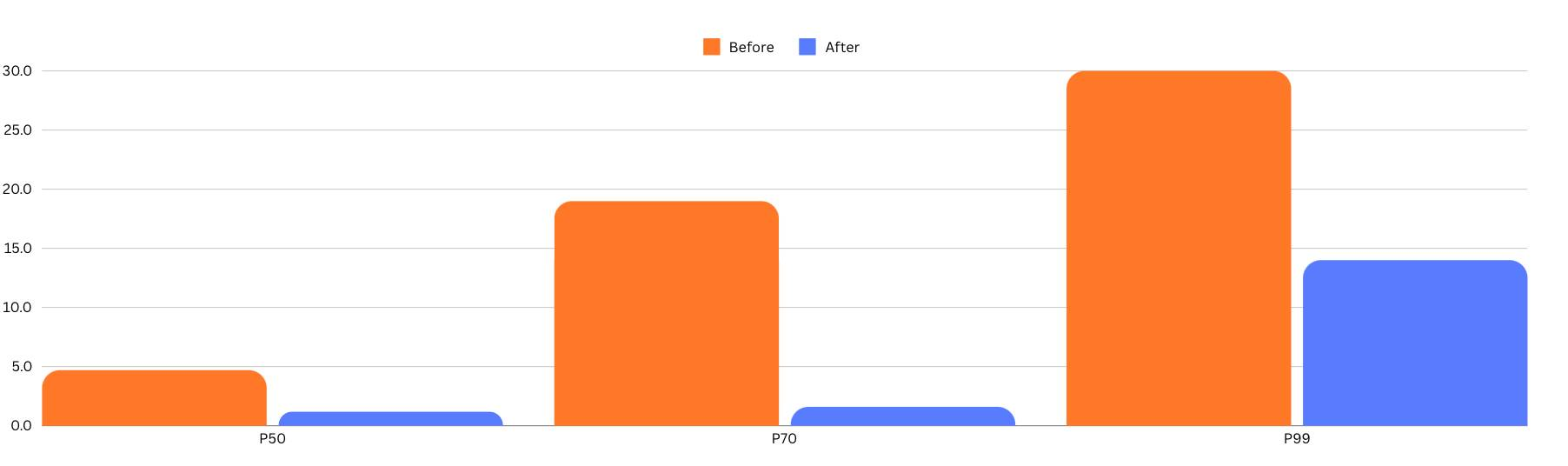

We launched on 31 January 2024, resulting in significant time and compute improvements.The following diagrams show the differences between January and February in our BE/MLPipeline and FE Pipeline, respectively.

Refinements on our slowest steps: E2E and Editor integration tests

With all the previous changes, where were the biggest opportunities now? What CIjobs were most often on the critical-path?

We found that about 80% of the time, our E2E tests were on the critical path ofour BE/ML Pipeline, while integration tests were on the critical path for our FE Pipeline.

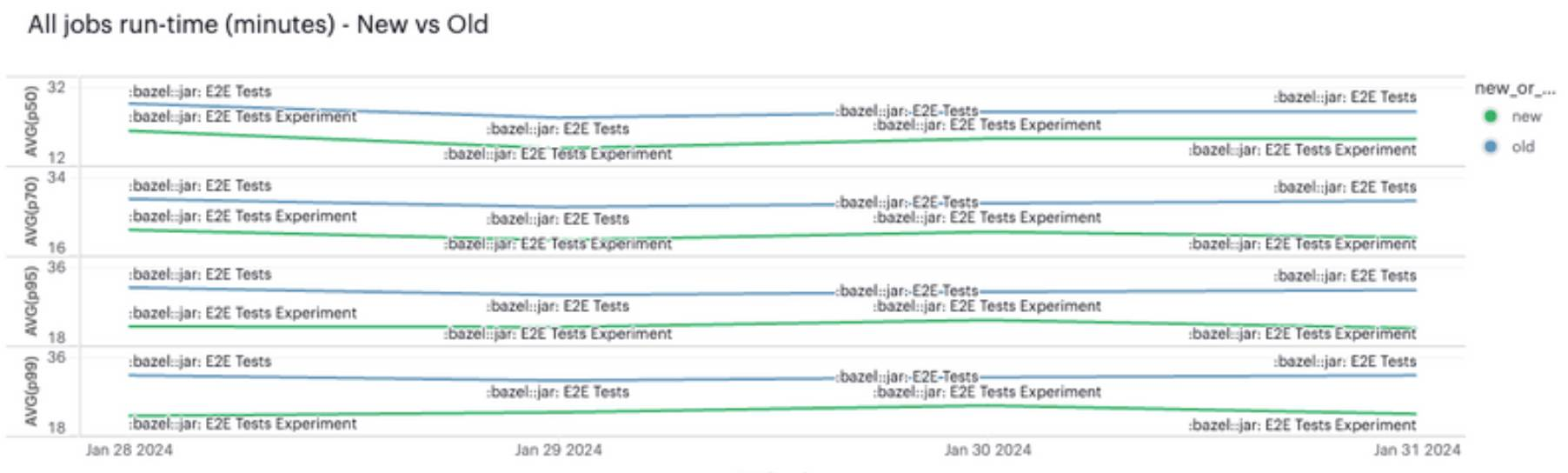

We improved the E2E tests by fixing their CPU requirements and adding a moreeffective worker pool to execute them. This reduced E2E test runtimes by 7-10minutes. We launched on 1 February 2024. The following diagram shows our results.

Our E2E test changes significantly improved the speed of our BE/ML Pipeline,putting the integration tests step of our FE pipeline on the critical path formost builds.

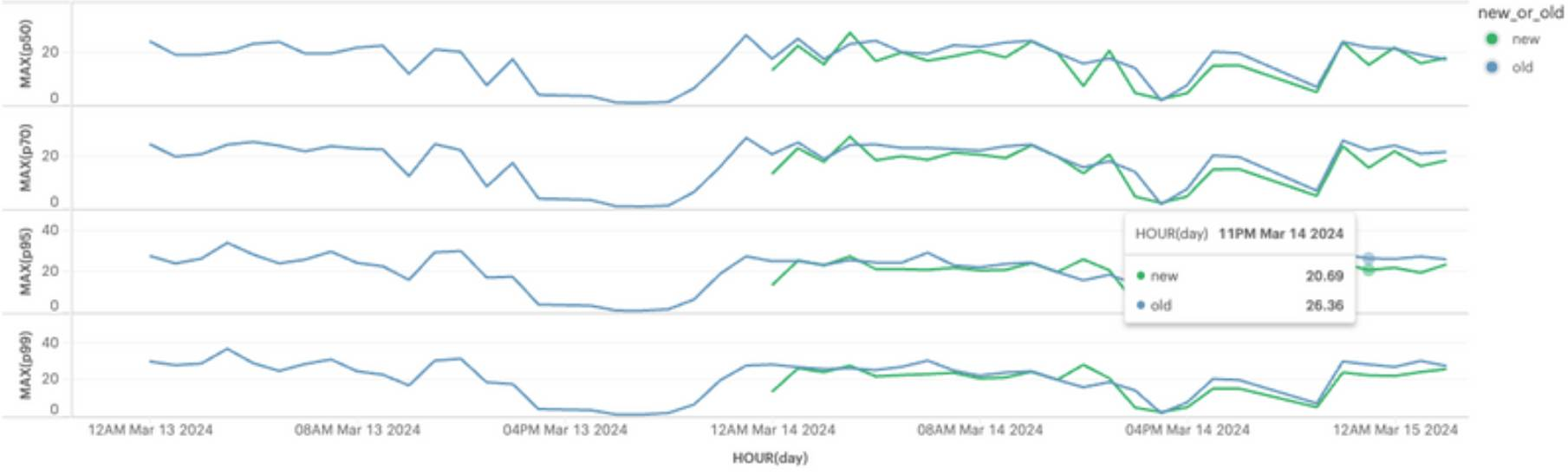

Another easy win was a new worker pool VM shape that had a better balance betweenCPU, memory, and disk (from i4i.8xlarge to c6id.12xlarge).

We launched on 18 March 2024 and saved another 2-6 minutes.

Both changes were quick and easy refinements to deliver, but both delivered significant improvements to build times.

Making tests faster and more reliable

As mentioned before, the CI critical path is bound by its longest stretch of dependentactions. If one test consistently takes 20 minutes to execute and flakes, and hassome logic to retry on failure, let’s say up to 3 times, it’ll take up to 60 minutes.It doesn’t matter if all other builds and tests execute in 30 seconds. That one slow,flaky test holds everyone’s builds back for up to 1 hour.

So, we wanted to improve and maintain test health (that is, flakiness and performance) across the codebase.Because it’s important to deliver incrementally, our plan was to reduce the worst case oftest executions to less than:

• 10 minutes.
• 5 minutes (P95).

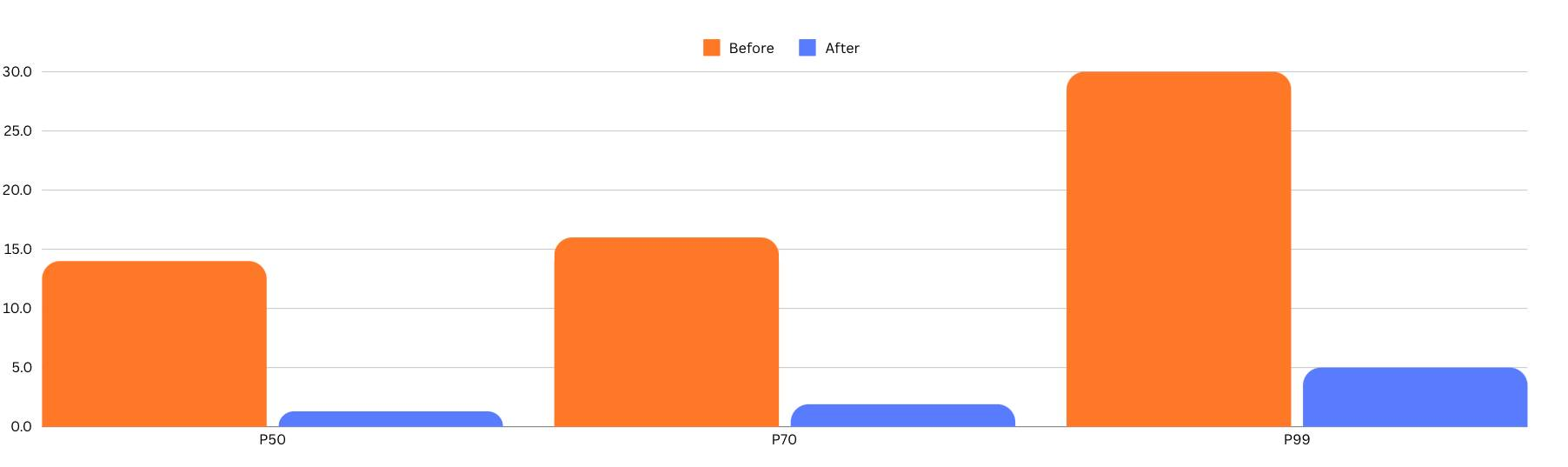

By manually disabling and helping owners improve slow and flaky tests, we reducedtest actions taking more than 10 minutes to 3 minutes. In parallel, we’re alsotrying to automate the enforcement of test health across the repository.

All the changes made the build times incrementally better over 2023 and into 2024.

Every part of the experience matters. It takes a village.

If everyone is moving forward together, then success takes care of itself. – Henry Ford

This post tells the story of improving CI build times. However, build timesare just a part of CI, and CI is just a part of the wider developer experience.While we couldn’t possibly mention everything that the Developer Platform groupdid to improve the DX in this post, we wanted to expand the scope and mention someinitiatives that significantly improved step times.

These projects or launches might not have had a large or direct impact on build timesbecause they weren’t on the critical path, but they still improved the CI DX bymaking the pass or fail signals of these steps faster.

Bazel Remote Build Execution (RBE)

Bazel can distribute its workload across a large cluster of executors. That way:

• Build actions from CI (and developer machines) are sent to a centralized build service,allowing us to distribute build computation across a farm of machines optimized to their workloads.
• Build inputs and outputs are co-located with build workers, allowing for faster I/O.
• We get better sandboxing and isolation (docker containers), allowing for a higher cache hit rate.

We’ve been exploring how to use RBE to improve our builds and tests for a while.We’ve enabled RBE for a few CI jobs already, with positive results. Here are the performanceand costs results (P95):

• Typescript builds: 200% faster
• BE unit tests: 25% faster
• BE compile and pack: No change in performance, but reduced cost from $0.262 to $0.21 per build on average.

Improved agent warm-ups on AWS

Agent warm-ups were quickly solved using EBS snapshots to load caches into new agents, resulting in significantly shorter wait times:

• 75% reduction in peak wait times for all large agents (P95 down from 40 minutes to 10).
• 70% faster startup time in CI agents (Down from 27 minutes to 8).

This also saved a significant amount of money by reducing the extra warm-up minutesduring which an instance is not doing CI work.

Linting improvements

We also significantly improved linting steps. We investigated the biggest opportunities and:

• Reworked the dprint CI pipeline so it didn’t need to waste time generating the list of files that dprint can format.
• Rebuilt the dprint setup by building bespoke dprint plugins for our use cases (for prettier and google-java-format).
• Swapped out some inefficient formaters for open source alternatives (for example, Python’s black switched to ruff).

Together, these changes improved the dprint formatting job times substantially.

They also improved the IntelliJ Formatter for Java, by reducing the required format passes per format.

Many other improvements

We made many smaller improvements to CI performance, such as Bazel version updates,wrapper optimizations, step consolidations, Java, Node, and Python tooling updates, MergeQueue updates,and so on. And that’s not even touching on improvements to DX outside of the CI space.But we’ll stop here.

Acknowledgements

Many Developer Platform folks worked extremely hard to make things happen and to improve CI build and step times.

Many people and teams outside of the Developer Platform group also made significant contributions:

• Build and test owners: For striving to make their builds and tests amazingfor every Canva engineer and helping us to continuously improve.
• Foundation groups and early-adopters: For giving us valuable feedback before we launched stuff.
• Cloud Platform: For your partnership in improving the CI and CD contracts andcontinuously supporting us with our cloud needs.
• Technical writers: For helping us make our writing (including this post!)clearer along the way.
• Everyone using Canva’s CI: For your patience when things were not great andfor giving us encouragement now that things are improving.

Are you interested in optimizing our developer experience? Join us!
